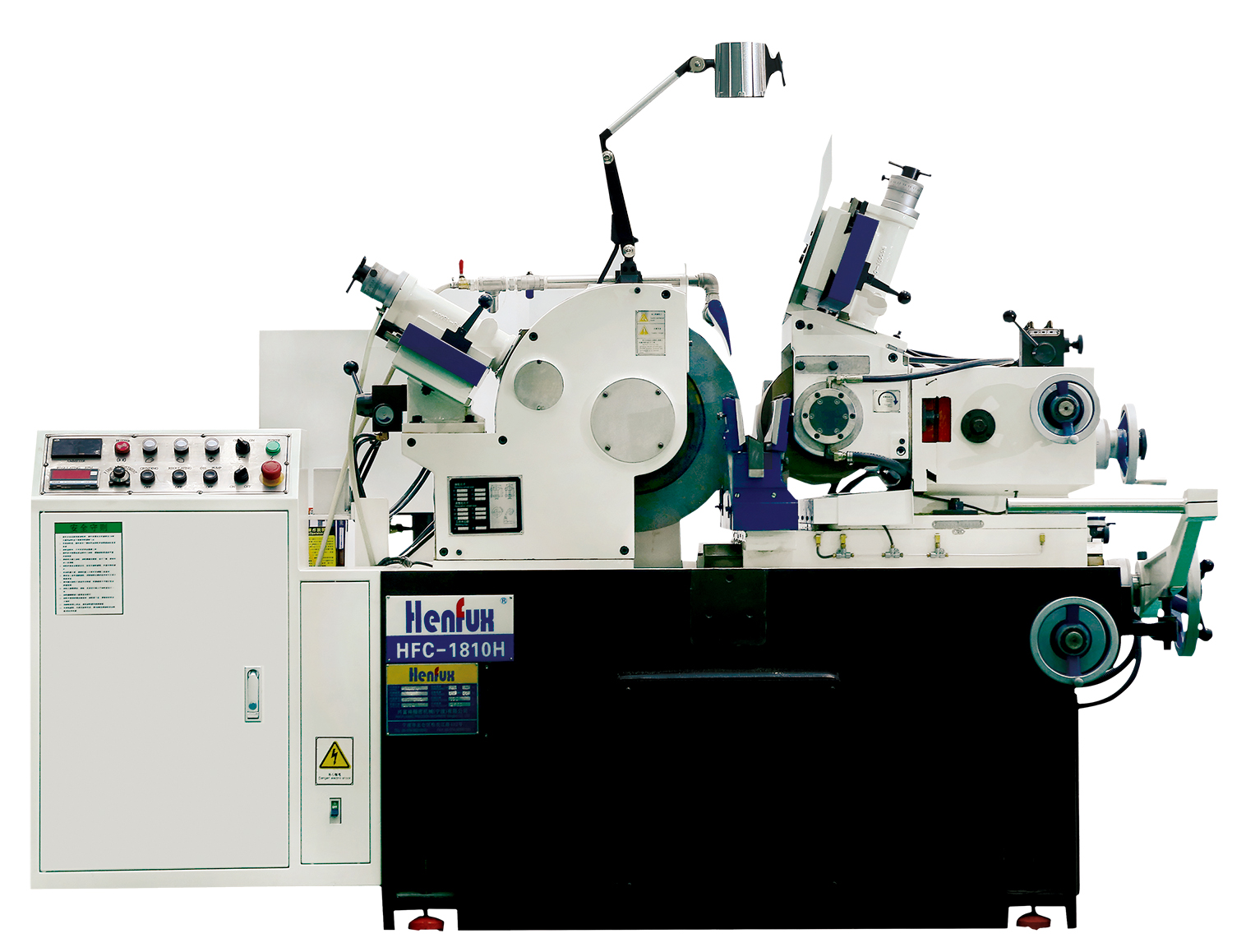

Hydrostatic machine HFC-1810H
Product NO.:
HFC-1810H
Applications:
Buy Online Download album
Share:
  • Product Overview
  • Parameters
  • Features
  • Applications
  • Related Products


>Machine bed made from high quality Meehanite cast iron, through natural aging to get high rigidity and stability.

>The spindle is made of high grade Nichrome steel, technology-leading in Taiwan and 3years warranty to be totally provide for each customer.

>Henfux Hydrostatic spinle is a special technoloy in this industry, the Hydrostatic spindle principle is completely take advantage of the mechanics principles.

>The spindle is assembled into a complete closed loop bearing, internal there is one oil film and the hydraulic oil pressure can reach 20~25kg/cm^2, with this arrangement the spindle can float in the closed bearing to avoid any touch with bearing metal, thus there is no friction to ensure high rotation speed of 45Mts/sec.

>GW`s linear speed is 45Mts/sec, surface finish could be 0.15μ.

>Hydraulic drive GW/RW dressing arrangement, smooth move, high precision dressing.


Accessories
Standard  Optional
1. Grinding wheel and flange  1. Wheel balancing stand and arbor
2. Guiding wheel and flange 2. Automatic infeed attachment
3. End feed blade 4. Hydraulic work ejector (infeed grinding)
4. Through feed blade 5. Automatic loading attachment (thrufeed grinding)
5. Oil tank pump 6. Automatic feeder for thrufeed grinding (hopper type)
6. Working lampe 7. Automatic unloading attachment (thrufeed grinding)
7. Diamond pen 9. Profile grinding attachment
8. Flange extractor 10. Magnetic coolant separator
9. Work rest for in feed 11. Magnetic with paper filter
10. Electric cabinet 12. Hydrocyclone coolant separator
11. Leveling bolts & plates 13. Auto. Loading and unloading attachment (infeed grinding)
12. Tools Kit 14. Vibratory feeder (thrufeed grinding)
  15. Diamond dressing roller


Compared
   Hydrodynamic type              Hydrostatic type              NC type
   HFC-1810H   HFC-1808H   HFC-1808T   HFC-1810T   HFC-1812T   HFC-1812H   HFC-1206H   HFC-2408H   HFC-1206TNC   HFC-1810TNC   HFC-1812TNC   HFC-1808HNC   HFC-1206T   HFC-1812HNC   HFC-1808TNC   HFC-1808HCNC-17A   HFC-1808TCNC-17A   HFC-1810TCNC-17A   HFC-1810HCNC-17A   HFC-1812HCNC-17A   HFC-1206HCNC-17A   HFC-1206TCNC-17A
Parameters
HFC-1810H
Grinding Wheel
Work dia.
Φ1~Φ50mm
Special work dia.
Φ40~Φ100mm
Dimensions(OD*W*ID)
Φ455×225×Φ228.6
Rotative speed
1520(600-2000) R.P.M/600
Drive motor
15HP(11KW) AC380/50Hz
Regulation wheel
Rotative speed
1-300 R.P.M
Drive motor
4HP(3KW) AC220/50Hz
RW tilt angle
+6°~-5°
RW swivel angle
±6°
Drive method
Worm gear speed reducer drive
Spindle
Spindle type
Hydrostatic pressure type
Spindle rotative precision
<0.0015mm
Hand Wheel
RW feeding hand wheel
3.5mm/ratate & 0.05mm/graduation
RW mirco-feed hand wheel
0.1mm/ratate & 0.001/graduation
Bottom slide feeding hand wheel
9mm/ratate & 0.10mm/graduation
Bottom slide micro-feed hand wheel
0.2mm/ratate & 0.001mm/graduation
Dressing feeding hand wheel
2mm/ratate & 0.01mm/graduation
NC Units
Bottom slide drive motor
/
Bottom slide feeding precision(Y1)
/
GW dressing motor X1,Z1
/
RW dressing motor X1,Z1
/
Auto loading&unloading mechanical arms motor(B1,B2)
/
Auto loading%unloading mechanical feeding precision(B1,B2)
/
Drive motor
Oil system motor
2HP(1.5KW) AC380/50Hz
Cooling device drive motor
1/4HP(180W) AC380/50Hz
Capacity
Machine size
2350×1960×1550mm
Machine package size
2400×2000×1800mm
Net weight
2950 kgs
Gross weight
3150 kgs
● The above specifications are for reference, the company has the right to change at any time, without notice.


RIGID MACHINE BED

Henfux self made Meehanite cast iron to ensure machine bed's high quality;

With 1.5 years natural aging to remove inner stress, machine bed can get high precision and deformation-free;

Slide-ways are high frequency hardened, precision ground, with high rigidity and wear resistance;

Stable machine bed structure design, maximum precision of the whole machine;




HYDROSTATIC SPINDLE AND HOUSING

Henfux patented hydrostatic technology, high precision and high rotation speed spindle;

Spindle equipped with Japanese high-grade alloy steel SNCM-220H, heat treated and then sub-zero treated, precision grinding. The spindle has high precision and high rotation speed.

Spindle is hydraulic oil pressure which can reach 20〜25kg/C to form an oil film. The spindle floats in the bearing when working, spindle has no contact with bearing. Thus there is no fiction, which ensure high precision grinding and long working life;

The hydrostatic spindle has 3 years warranty.

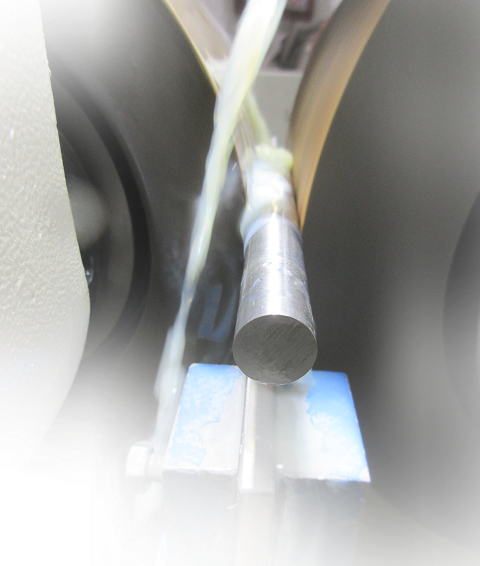

HIGH PRECISION GRINDING

Henfux self made and assembled spindle which can reach high precision(<1.5μm) to perform excellent grinding work;

GW maximum surface speed: 50m/s(Hydrostatic), 35m/s (Hydrodynamic) to ensure the best surface finish of work piece;

RW infinitely variable speed (10~300rpm) to match different grinding work.

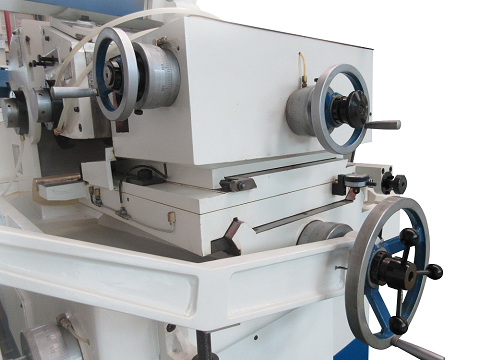

SLIDE TABLE

The upper slide moves on double-wedged ways, the bottom slide moves on double shaped slide-ways, which provides smooth and accurate feeding.

Upper slide with +6°~-6°swiveling in taper grinding;

Upper slide provides the surface contact adjustment between the work piece and grinding wheel in through feed grinding, swiveling adjustment range: +6°~-5°.

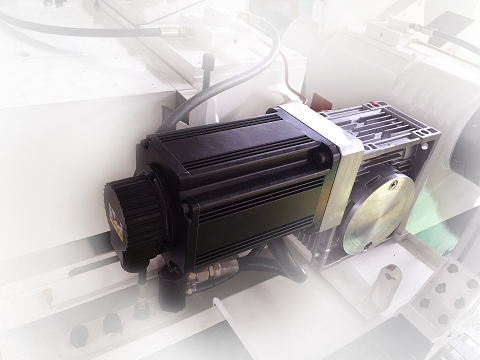

REGULATING SERVO MOTOR

RW servo motor provides infinitely variable speed from 10 to 300rpm, which can be adjusted to the most suitable speed easily;

RW servo motor and transmission equipped by the side of RW, which is fast reacted, driven by worm, which ensures RW is vibration-free also the stability is high.

The servo motors directly drive regulating wheel through worm and worm gear, which ensures the regulating wheel is vibration-free and improves the stability of grinding.
