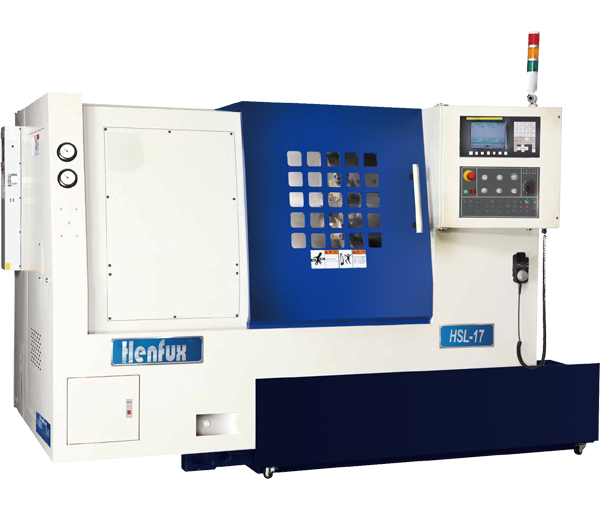

Sland bed CNC lathe HSL-17
Product NO.:
HSL-17
Applications:
Buy Online Download album
Share:
  • Product Overview
  • Parameters
  • Features
  • Applications
  • Related Products
Standard accessories Optional accessories
Threejaw + Hollow hydraulic cylinder + 1 set Standard hard jaw and soft jaw Servo Turret
Hydraulic Turret and Tool Holders Power Turret
Tailstock The Vice Spindle
FANUC 0iMate -TD Upgrade Fanuc 0i-TD
8.4" Color LCD Monitor Lengthen L
Rigistered Part Program Numbers:400 sets  Lengthen LL
CNC Part Program Memory Size :640 m  Big Size Threee Jaw Chuck
RS-232 Interface    Extra Three Jaw Chuck
Heat Exchanger For Electric Cabinet Install Collet Chuck
Oil Pressure System Tools Measurement Device
Air Pressure Grindig Fluid System Bar Feeder With Complete Machine Interface  Mechanical/Hydraulic Type
Full-Enclosed cover for the X/Z Axis + Three-color warning light  Auto Door closing
Automatic lubrication system  Oil Mist collector
Tools and Tool kits Grinding Fluid oil removing device
Operation manual + Parts list High Pressure Coolant System
Chip Conveyor + Chip Cart Air conditioner of Electric Cabinet
The Feeder Device
Transformer
*The above accessories are for reference, please take the future details quotation as the standard.
Compared
   Slant bed CNC lathe
   HSL-17   HSL-10TS   HSL-10T   HSL-15   HSL-15M   HSL-17M   HSL-17L
Parameters
HSL-17
Capacity
Swing Over Bed
481mm
Swing Over Saddle
291mm
Max. Turning Diameter
381mm
Max Turning length
501mm
Spindle
Spindle motor output power
11kw/15kw
Spindle Nose
ISO A2-6
Spindle Rotation Speed
4500rpm
Spindle Thru-Hole
ø62mm
Bar Capacity
ø52mm
Chuck Size
8
Collet Specification
/
Spindly Motor
/
Cs axis
/
Cs Axis precision
/
Brake System
/
Travel
X-Axis Travel
250rpm
X-Axis Motor
X-axis motor output
1.5
X-Axis Rapid Feed Rate
X-axis of the screw outer diameter
ø28mm
z-Axis Travel
Servo Turret
X-axis rapid traverse rate
24m/min
Z-Axis Motor
Z-Axis Rapid Feed Rate
ø32mm
Z-axis output power
12
Z-axis screw outer diameter
20mm
Turret
Tool holder type
550mm
Turret Type
/
Tool Ports
Number of tools
/
Turning Tool Size
/
Boring Tool Size
/
Comb-typeTurning Tool Size
Comb-type Boring Tool Size
Sub-spindle
Sub Spindle Nose
/
Sub Spindle Chuck Size
/
Sub Spindle Motor
/
Sub Spindle Motor Speed
/
W Axis Motor
/
Sub Spindle Cellet
/
Sub Spindle Thru-Hole
/
Sub Spindle Bar Capacity
/
Others
Power Specification
220V/60HZ/20HP
Machine Dimension (LxHxW )
2200x1700x1800mm
Machine Woight
3500kg
Power Axis
Power Axis motor output power
1.5kw
Power Axis rotation speed
ø32mm
Power Axis type
20m/min
Tailstock
Tailstock travel
370mm
Quill diameter
ø60mm
Quill travel
ø90mm
Quill taper
MT-4
● The above specifications are for reference, the company has the right to change at any time, without notice.


45Slant Bed Structure

The 45゜is one-piece fabricated from Meehanite cast iron, and the stress is relieved for deformation-free. Boxway design for both X and Z axis, suitable for heavy turning operation. The bed is analysised through Finite Element Analysis software to optimize rigidity and minimize structural deformation.




Power turret

·VDI 30 axial tool holder

·DIN 5480 power coupling

·Double motor design, positioning motor and power turret motor.

·Overload protection. Quick positioning

·Hydraulic locking system

·Cs-axis equipped for milling, drilling and taping operations. Circular encoder and high-low pressure dish brake system are equipped for stability and accurate positioning for the Cs axis.



Hydraulic servo turret

·Turret disk accurate positioning is driven by servo motor

·Turret disk & its indexing equipped with servo motor

·Sufficient torque but low noise

·The clamping and un-clamping action of the 3-piece curvic coupling are driven by hydraulic cylinder.

·Fast and precise tool changing action


Hydraulic Tailstock
The hydraulic tailstock Quill movement is driven by hydraulic power, it makes workpiece holding more convenient and secured.
