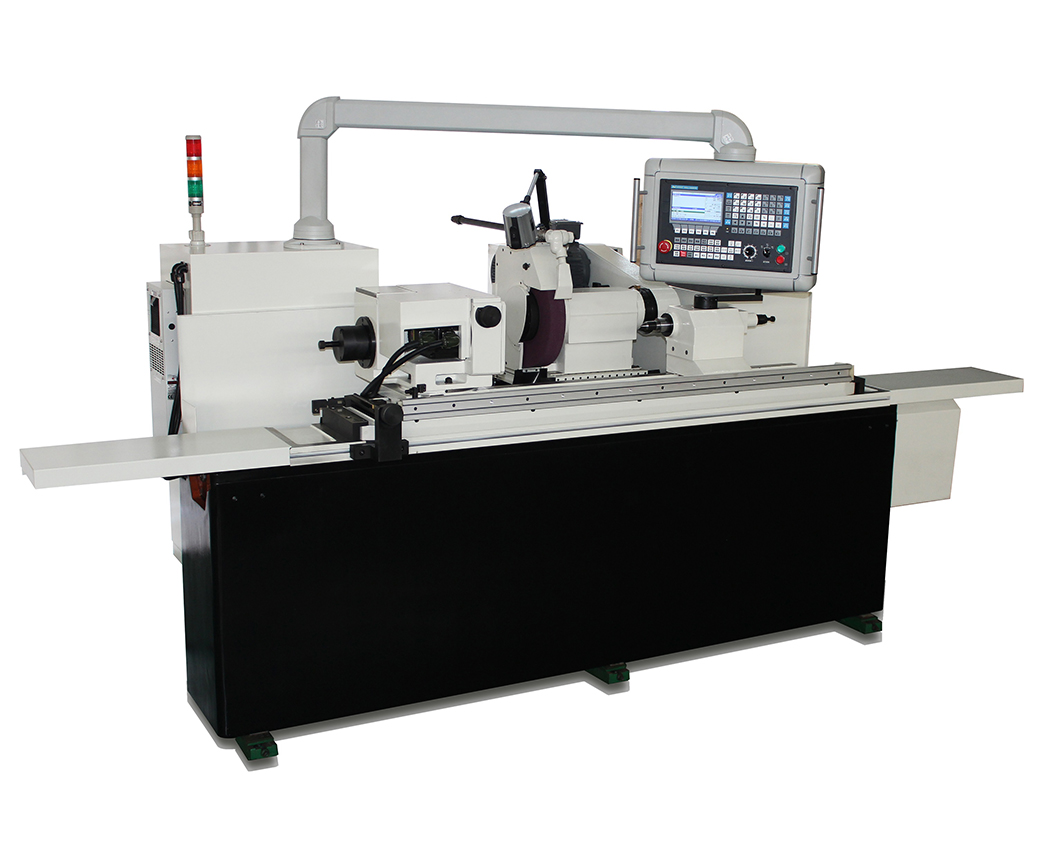

Cylindrical grinding HFU-3210
Product NO.:
HFU-3210
Applications:
Buy Online Download album
Share:
  • Product Overview
  • Parameters
  • Features
  • Applications
  • Related Products

High speed grinding

Configura the transducer device , the GW linear speed can reach 50m/sec to achieve the best performance surface accuracy.


Hydrostatic bearing
The GW spindle is support by the Hydrostatic bearing, the spindle completely floats in the oil film without contact to housing when working, thus there is no friction, which ensures high precision grinding and long working life.

High accuracy GW spindle
The GW spindle is made of  high-grade alloy steel SNCM-220H, heat treeated and then sub-zero treated, precision grinding, thus the spindle has high precision and high rotation speed.


High rigidity spindle workhead

Adopt servo drive motor, infinitely variable speed and make high speed and high precision grinding.

Oil bath lubrication tailstock

The oil bath lubrication system can make sure the toilstock achieve high movement operation. Also configura a fuel gauge for opeator`s convenience checking and inspection.



Compared
   Cylindrical grinding
   HFU-3210
Parameters
HFU-3210
General Capacity
Swing over table
Φ320mm
Max.distance between two centers
1000mm
Max.grinding length
1000mm
Max.grinding diameter
Φ300mm
Grinding wheel
GW size
Φ355*50*Φ127mm
GW feeding precision
0.001mm
GW rotation speed
1445R.P.M
Worktable
Worktable rapid feed speed
6m/min
Worktable moving precision
0.001mm
Worktable swivel angle
0~10°
Spindle
Spindle head swivel angle
-30~40
Center taper
MT.NO.4
Worktable spindle rotation speed
1~500rpm
Max.load of spindle(tool holder included)
35kg
Motor
GW driving motor
5HP(3.7kw) AC380/50Hz
Worktable spindle servo motor
1kw AC200/50Hz
Worktable feed servo motor
1.5kw AC200V/50Hz
GW spindle feed servo motor
1kw AC200/50Hz
Hydraulic pump
2HP(1.5kw) AV380/50Hz
Coolant pump
1.4HP(180kw)AC380/50Hz
Capacity
Machine dimension(L*W*H)
4000*2300*1600mm
Machine weight
400kgs
● The above specifications are for reference, the company has the right to change at any time, without notice.

Henfux new products that was through our independent research and development. Base on Henfux engineer`s understanding of grinding machine and Henfux`s currently resource, this new model HFU-3210 cylindrical grinding machine is make a great succeed. The main feature of this machine are

>Rigid Meehanite box-tyoe machine bed. All of Henfux machine`s machine body is provide by ourself from our casting factory.

>Hydrostatic spindle technology. Base on our centerless grinding machine completely mature Hydrostatic spindle technology, we also configurate the Hydrostatic spindle on HFU-3120, it is the first one who use this on cylindrical machine.

>The grinding speed could reach 50m/sec, industry leading!
