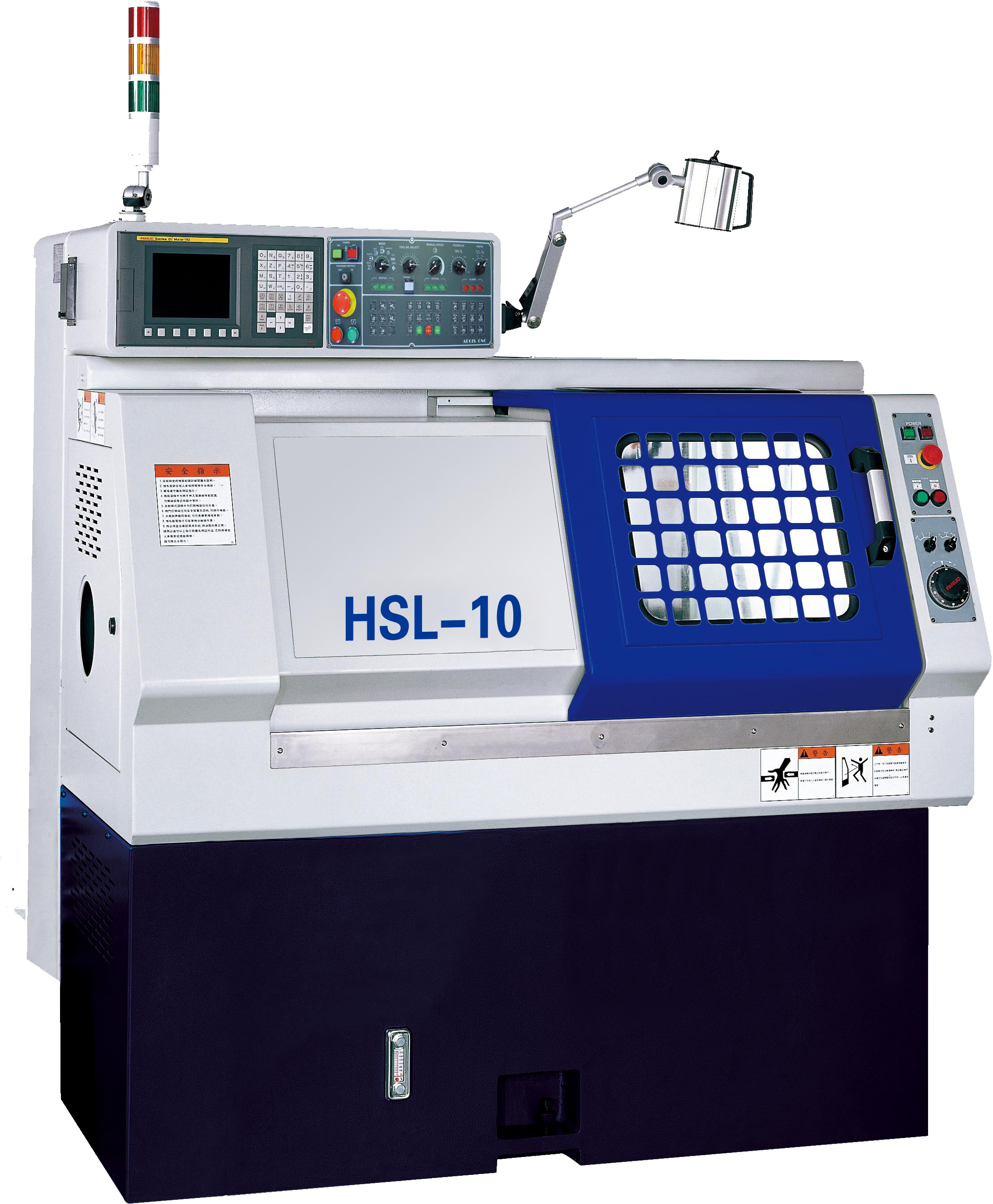

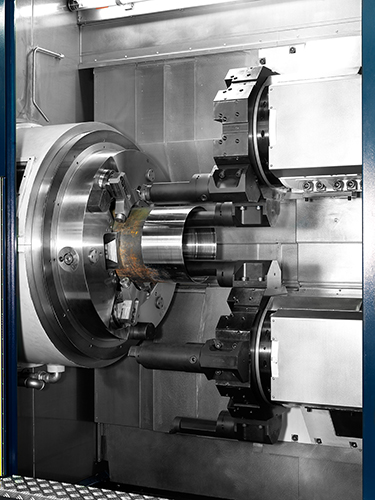

Slant bed CNC lathe HSL-10T
Product NO.:
HSL-10T
Applications:
Buy Online Download album
Share:
  • Product Overview
  • Parameters
  • Features
  • Applications
  • Related Products
Standard accessories Optional accessories
Threejaw + Hollow hydraulic cylinder + 1 set Standard hard jaw and soft jaw Servo Turret
Hydraulic Turret and Tool Holders Power Turret
Tailstock The Vice Spindle
FANUC 0iMate -TD Upgrade Fanuc 0i-TD
8.4" Color LCD Monitor Lengthen L
Rigistered Part Program Numbers:400 sets  Lengthen LL
CNC Part Program Memory Size :640 m  Big Size Threee Jaw Chuck
RS-232 Interface    Extra Three Jaw Chuck
Heat Exchanger For Electric Cabinet Install Collet Chuck
Oil Pressure System Tools Measurement Device
Air Pressure Grindig Fluid System Bar Feeder With Complete Machine Interface  Mechanical/Hydraulic Type
Full-Enclosed cover for the X/Z Axis + Three-color warning light  Auto Door closing
Automatic lubrication system  Oil Mist collector
Tools and Tool kits Grinding Fluid oil removing device
Operation manual + Parts list High Pressure Coolant System
Chip Conveyor + Chip Cart Air conditioner of Electric Cabinet
The Feeder Device
Transformer
*The above accessories are for reference, please take the future details quotation as the standard.
Compared
   Slant bed CNC lathe
   HSL-10T   HSL-10TS   HSL-15   HSL-15M   HSL-17   HSL-17M   HSL-17L
Parameters
HSL-10T
Capacity
Swing Over Bed
ø 400mm
Swing Over Saddle
ø200mm
Max. Turning Diameter
ø120mm
Max Turning length
250mm
Spindle
Spindle motor output power
/
Spindle Nose
ISO A2-5
Spindle Rotation Speed
5000rpm
Spindle Thru-Hole
Ø52mm
Bar Capacity
Ø42mm
Chuck Size
6
Collet Specification
F48
Spindly Motor
7.5/11
Cs axis
/
Cs Axis precision
/
Brake System
/
Travel
X-Axis Travel
300mm
X-Axis Motor
1kw
X-axis motor output
/
X-Axis Rapid Feed Rate
18m/min
X-axis of the screw outer diameter
/
z-Axis Travel
300mm
X-axis rapid traverse rate
/
Z-Axis Motor
1kw
Z-Axis Rapid Feed Rate
18m/min
Z-axis output power
/
Z-axis screw outer diameter
/
Turret
Tool holder type
/
Turret Type
Servo Turret+Comb-type holder
Tool Ports
8
Number of tools
/
Turning Tool Size
20
Boring Tool Size
Ø20
Comb-typeTurning Tool Size
16mm
Comb-type Boring Tool Size
ø20mm
Sub-spindle
Sub Spindle Nose
/
Sub Spindle Chuck Size
/
Sub Spindle Motor
/
Sub Spindle Motor Speed
/
W Axis Motor
/
Sub Spindle Cellet
/
Sub Spindle Thru-Hole
/
Sub Spindle Bar Capacity
/
Others
Power Specification
20KVA
Machine Dimension (LxHxW )
2200x1600x1800mm
Machine Woight
2000kg
Power Axis
Power Axis motor output power
/
Power Axis rotation speed
/
Power Axis type
/
Tailstock
Tailstock travel
/
Quill diameter
/
Quill travel
/
Quill taper
/
● The above specifications are for reference, the company has the right to change at any time, without notice.

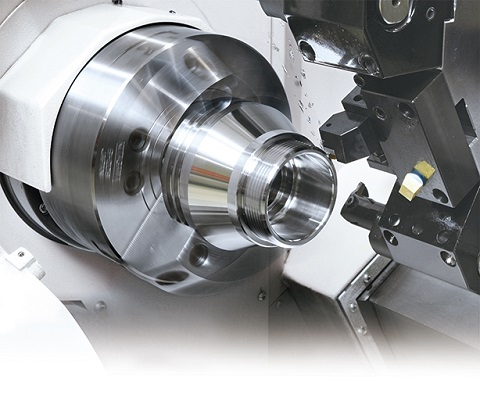

Comb-type holder

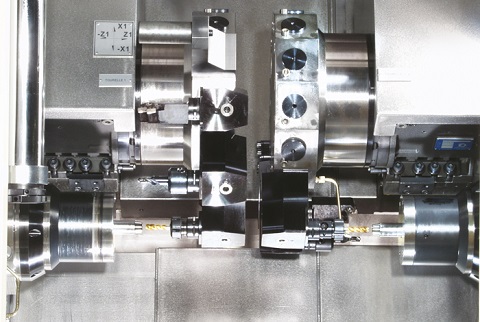

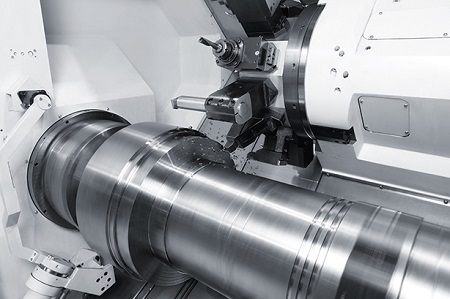

Showing its sensitivity and stability while machining workpieces.


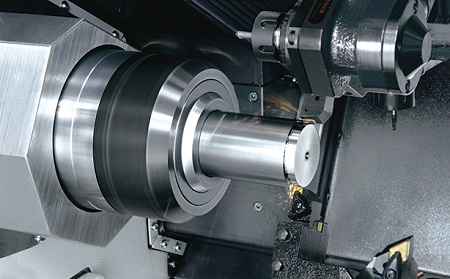

Build-In Spindle.

Without vibration from belt transitions, more stabilized turning accuracy can be achieved for high-speed machining operation.



Servo Tailstock.

With this special design, there is no interference between the comb-type holder and the programmable tailstock.

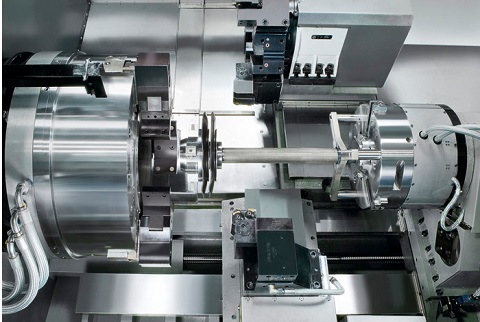

Sub-spindle.

With this special design, there is no interference among the servo turret, the comb-type holder and the sub-spindle. With helps of bar feeder, turning operations and rear-side turning operations can be done within single clamping.
