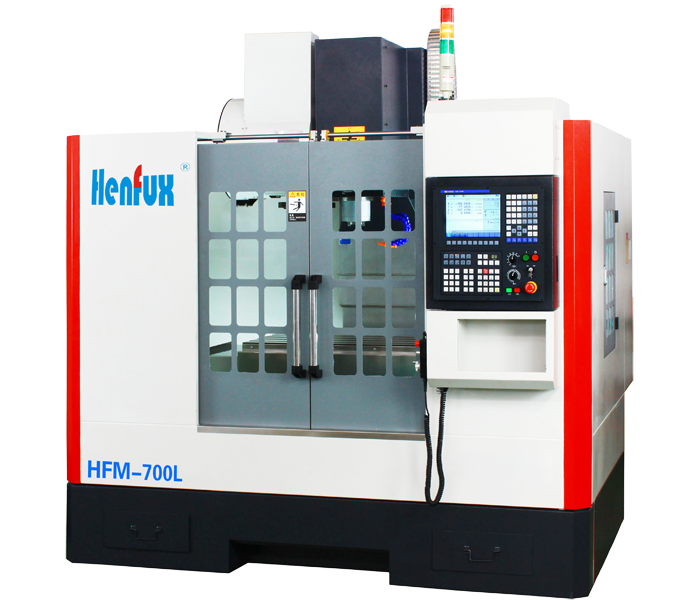

Vertical machining center HFM-700L
Product NO.:
HFM-700L
Applications:
Buy Online Download album
Share:
  • Product Overview
  • Parameters
  • Features
  • Applications
  • Related Products


>Linear rolling guide-ways for three-axis, high processing speed, long working life.

>Advanced box-type designed machine body provides high stability and strong rigidity

>Computer controlled auto lubricating system.

>Float broach mechanism design, to protect spindle bearing from tool shock & hitting, also keep spindle bearing's accuracy and long working life.

>Full splash guard to protect the security and reliability for 3-axis guide ways.

>Suitable for high processing of small/medium parts.


Accessories
Standard  Optional
1. Fully enclosed guard  1. Chip remover device
2. Auto lubrication system 2. Coolant through spindle(CTS)
3. Pneumatic tool exchange arrangement 3. Oil-Water separator
4. Blowing device 4. 4th axis rotary table
5. Coollig  arrangement/Lighting arrangement
6. 3 color light
7. Adjusting pad block
8. Spindle coolant arrangement
9. Air conditioner for electric cabinet
10. Tool, Toolbox
11. Technicaldocument
12. Tools Kit



Compared
   Vertical machining center               Gantry machining center
   HFM-700L   HFM-650   HFM-700   HFM-1302   HFM-800V   HFM-1100V   HFM-960L   HFM-850L   HFM-1502   HFM-1160L   HFM-1580   HFM-1890
Parameters
HFM-700L
Travel
Travel X
X axle-700mm
Travel Y
Y axle-450mm
Travel Z
Z axle-500mm
Worktable
Table size
445mm*850mm
T-slot size
4*18mm
Max load
500kg
Spindle&3-Axis
Spindle taper
BT40
Spindle speed
8000 rpm
Spindle center to table
130-630mm
Spindle center to column
500mm
Spindle Motor
5.5kw
Three axis motor
1kw
Rapid feed rate
20m/min
Cutting feed rate
10000mm/min
Accuracy
Positionging accuracy
0.01mm
Positionging repeatability
0.005/300mm
Other
Air pressure
6kgf/cm2
Input power
10KVA
Tool magzine
16
Weight
3600kg
Overall dimension (L*W*H)
2200mm*2200mm*2300mm
● The above specifications are for reference, the company has the right to change at any time, without notice.

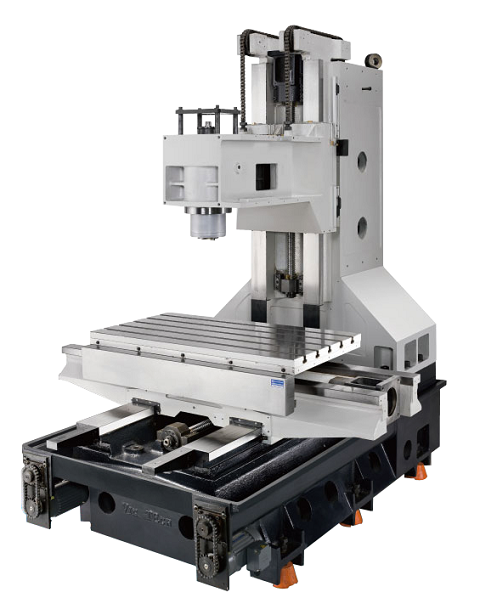

Stability of machine body

Machine body design base on widly structure which can provide reliability to ensure the processing accuracy.

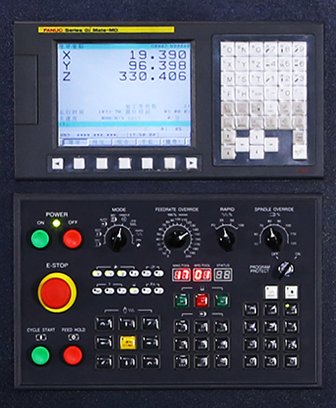

Optional controller system

MITSUBISHI 、SIEMENS 、FANUC

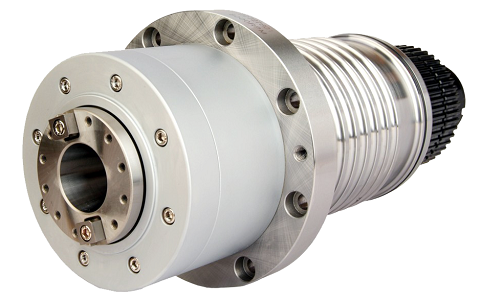

High precision, High rigidity spindle。

The spindle adopts super precision angular contact ball bearings.
9000~10000rpm spindle as standard accessory for feasible.


3 Axis servo motor & 3 axis guidway

The spindle adopts super precision angular contact ball bearings. 10000rpm spindle as standard accessory.

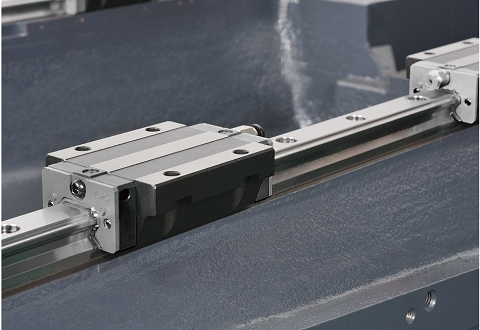

High speed linear guide ways used on 3-axes of machine, accomplish super load capacity and rigidity. Toget ultra-high precision operation and high precision machining.

3 axis boxway, a lower rapid feed speed but with more higher rigidity. That can reach a higher cutting output, since the boxway have a more widely contact surface it can bear heavey vibration buring operation.
